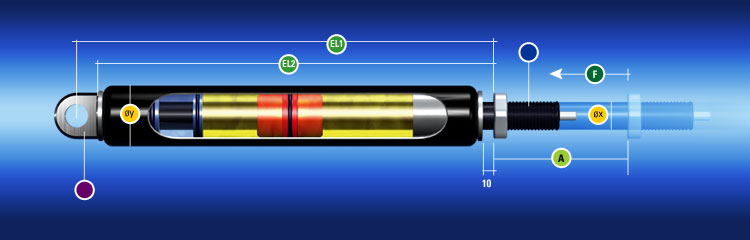

Lockable gas traction springs are continuously adjustable over the whole stroke. The lockable gas traction spring can be released by pushing the release pin. When the piston valve opens, gas or oil can flow through the piston and the piston rod will be inserted. Due to the high reliability, this type of spring is preferentially used for medical equipment.
What is possible:
Pull-in force:10-4000 N (depends on diameter piston rod/cylinder Locking force in push and pull directionmax. 10.000 N Stroke:10-35 mm Release travel:Short release possiblerelease travel < 1mm Diameter piston rod/cylinder:10/28 and 14/40Rigid locking in push and pull direction Speed/damping:normalfastslow Connecting parts:The piston rod is available with the threads MF10x1x18 for piston rod 10 or with MF14x1,5x20 for piston rod 14.You can find the right "connection" for your gas traction spring here.
