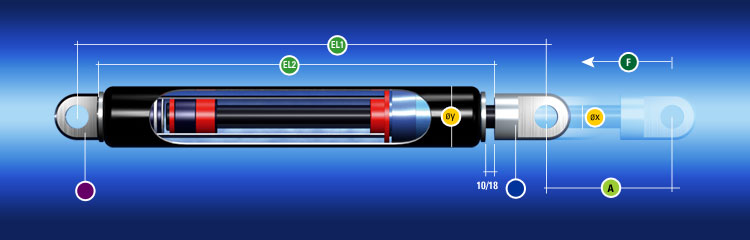

The basic position of gas traction springs is with inserted piston rod. We differ between short (standard) and long construction types. The speed of standard gas traction springs with short construction is fast and cannot be influenced. The gas traction spring with long construction is available with and without damping. The speed can be varied by using different nozzles.
What is possible:
Pull-in force:100-4000 N (depends on diameter piston rod/cylinder) Stroke:10-600 mm Diameter cylinder/piston rod:8/22, 10/28 and 14/40 Speed/ damping:The speed of gas traction spring with short construction is always fast and cannot be damped. A valve (undamped) is possible for this Type. Connecting parts:You can find the right "connection" for your gas spring here.
Pull-in force:50-2500 N (depends on diameter piston rod/cylinder) Stroke:10-200 mm Diameter cylinder/piston rod:6/19, 8/22, 10/28 and 14/40 Speed/ damping:Our gas springs are available with fast normal and slow extension speed. Regarding the damping, you can choose between normal, increased and no end damping, however, this becomes only efficient if the gas spring is mountedwith the piston rod showing downwards. Connecting parts:You can find the right "connection" for your gas spring here.
